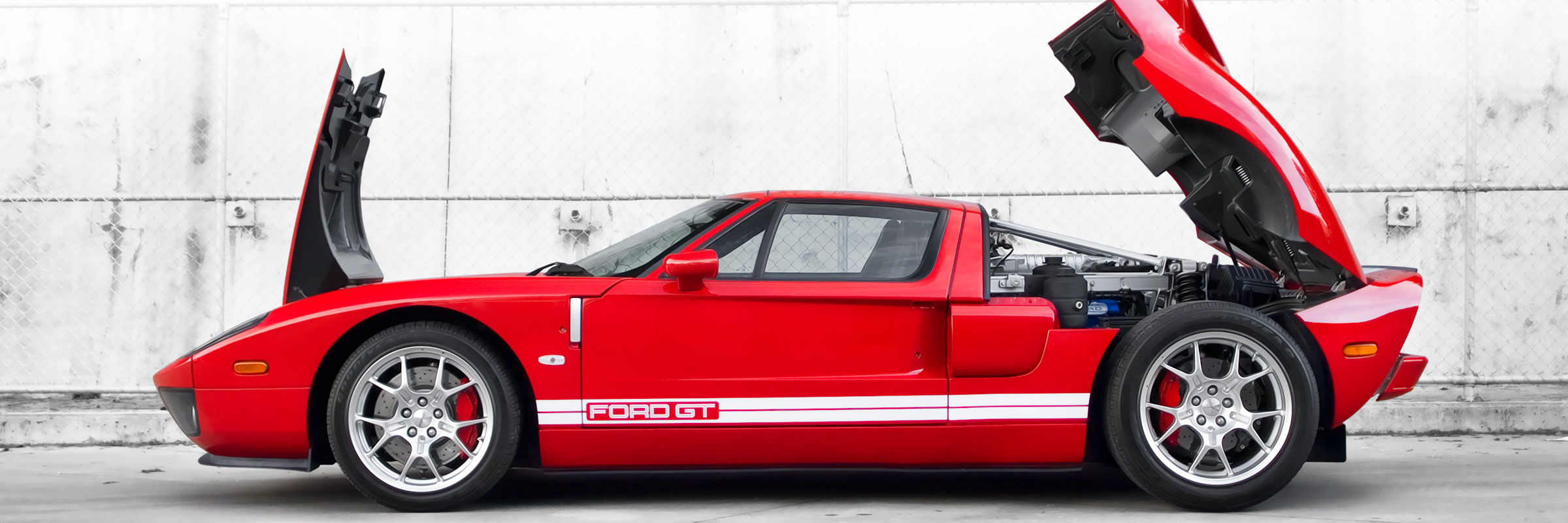

  • Ford GT Red Side
  • Ford GT Interior

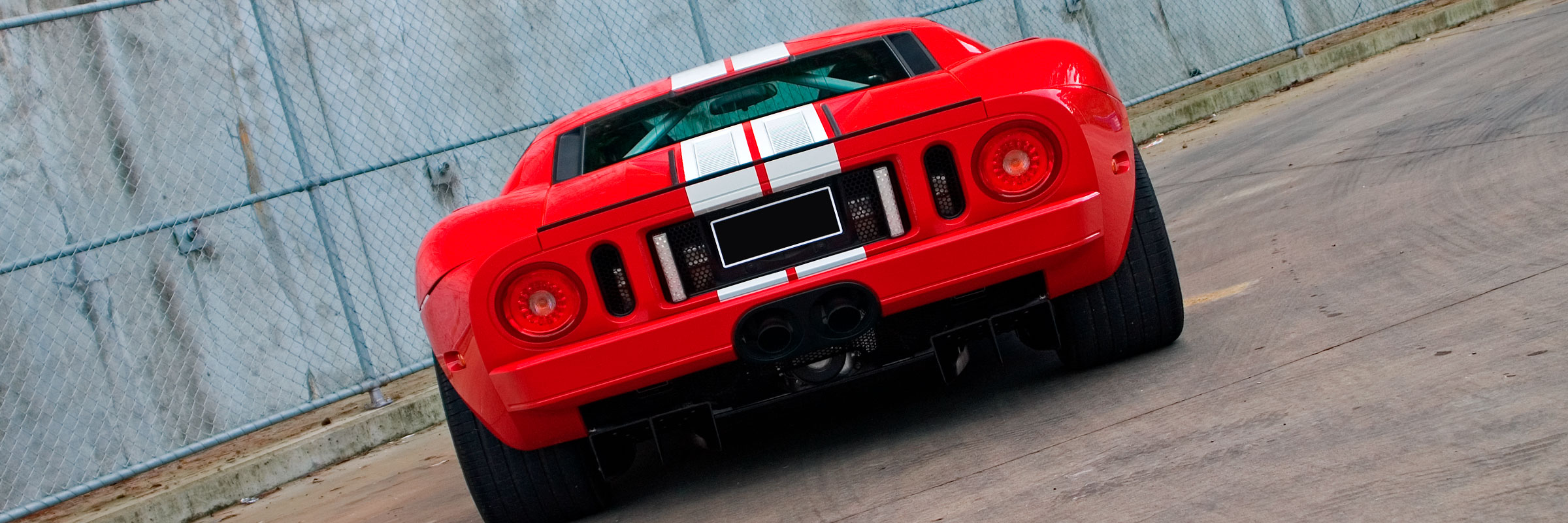

  • Ford GT Red Rear


Wheelbase - 2710mm
Length - 4343mm
Height - 1125mm
Width - 1953mm
Track - front/rear  - 1600/1618mm

Head room - 899mm
Shoulder room - 1466mm
Leg room - 1133mm

Drivetrain Layout - Mid engine/rear wheel drive
Engine type - 5.4L DOHC 48 valve supercharged V8

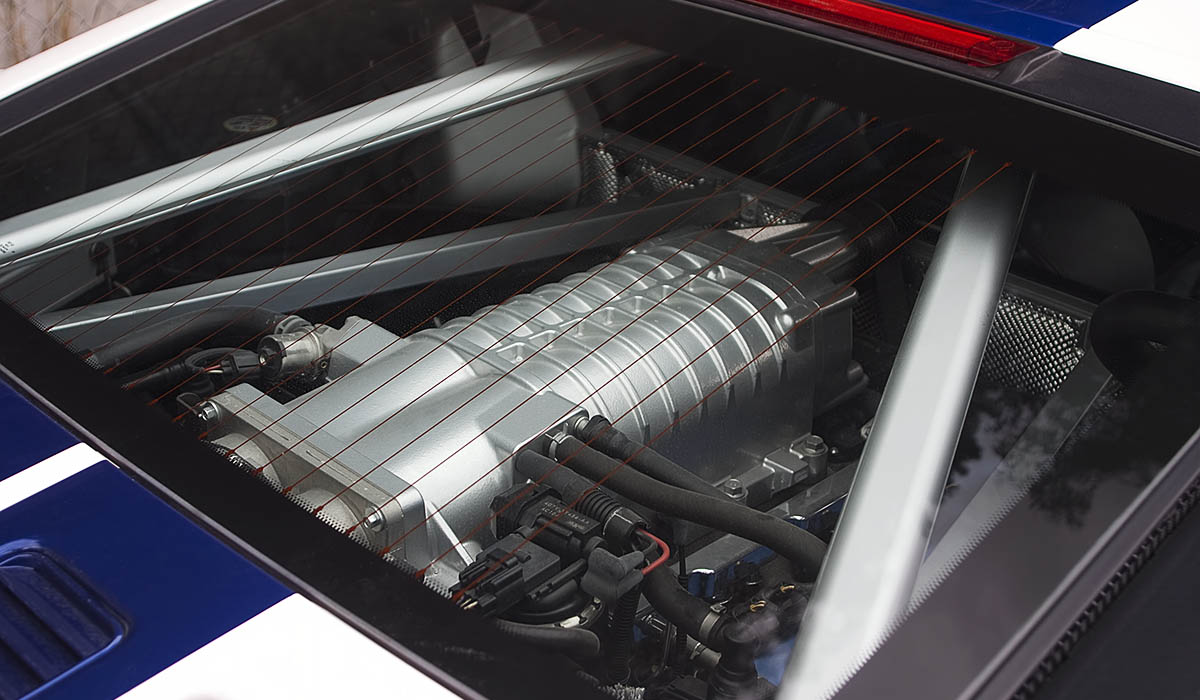

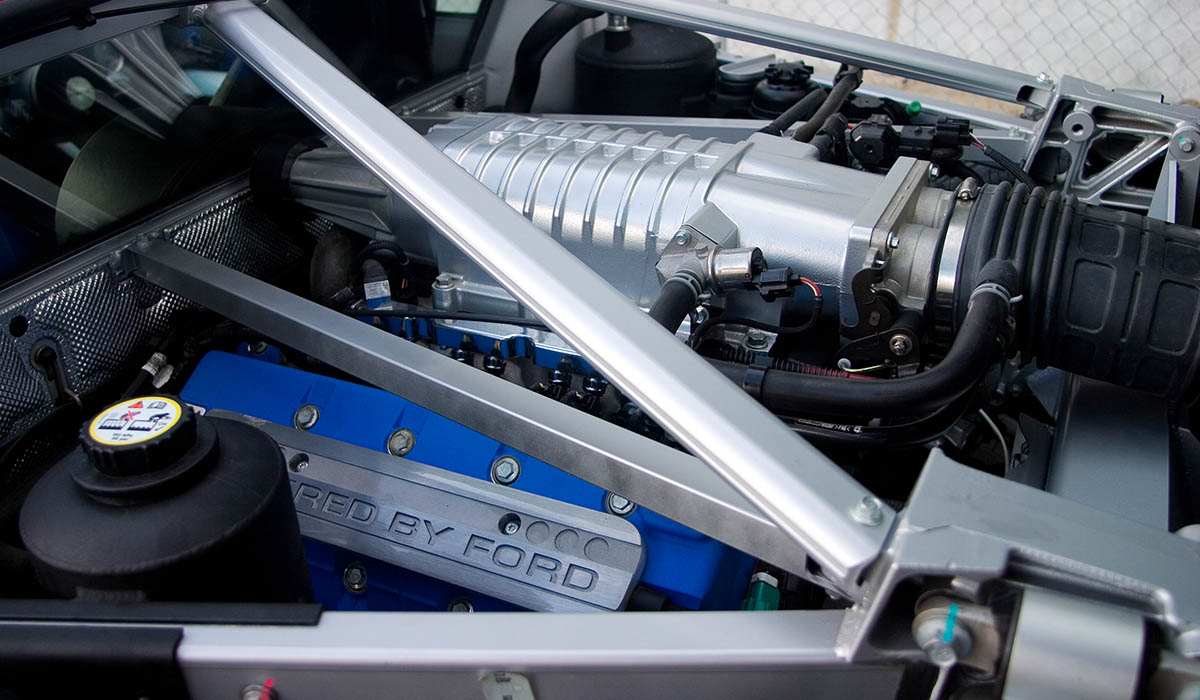

Supercharger - Eaton 2.3L Lysholm screw-type with intercooler
Engine Electronics - EEC-V OBD II
Displacement - 5.4L
Power - 410kw @ 6500rpm
Torque - 678nm @ 3750rpm
Compression ratio - 8.4:1
Bore & Stroke - 90.2 x 105.8mm
Fuel delivery - Sequential multi-port Electronic Fuel Injection with dual injectors per cylinder
Recommended fuel  - 91 octane (premium)
Transmission type - 6-speed manual transaxle
Gear Ratios:
1st - 2.61
2nd - 1.71
3rd - 1.23
4th - 0.94
5th - 0.77
6th - 0.63
Reverse - 3.135
Final drive ratio - 3.36:1

Suspension (front and rear) - Independent double wishbone with unequal length aluminium control arms, coil springs, non-adjustable forged aluminium shock absorbers with forged aluminium housings
Brakes - Brembo vented discs 356mm (front) and 335mm (rear) with 4-piston calipers and ABS
Steering - Power rack-and-pinion


Sparco® leather sport bucket seats with carbon fibre structure - Standard
Child tether bracket and ISOFIX latch assembly on passenger seat - Standard
Air conditioning with recirculation - Standard
AM/FM stereo with single CD/MP3 & clock; system includes 2 door speakers - Standard
McIntosh AM/FM stereo with single CD player; includes 2 door speakers, 4-channel amplifier, 8" subwoofer and 1" door tweeters - Optional
Instrumentation: Analog cluster, tachometer, speedometer, trip odometer, voltmeter, vacuum boost, oil pressure, engine temperature and fuel level gauge - Standard
Battery saver feature - Standard
Power door locks - Standard
Power point (12v) located in instrument panel - Standard
Leather-wrapped steering wheel with tilt/telescoping - Standard
Maplights integrated into rear view mirror - Standard
Polished aluminium sphere shift knob - Standard
Console-floor: cast magnesium with armrest, gear shift, park brake, A/C and heater controls - Standard
Interior trim: black leather-wrapped instrument panel, door trim panels, header trim panel, centre console armrest, centre bulkhead panel, A & B pillars and cowl trim, seats - Standard
Visors: driver and passenger - Standard
Power windows - Standard

Grilles: front and rear fascia, functional engine intake grilles, decklid air extractor vents - Standard
HID headlamps with front and side markings - Standard
Aerodynamic package with front spoiler/splitter, side splitters, mini underbody diffusers, full underbody cladding, rear diffusers and rear lip spoiler - Standard
Painted brake calipers (black) - Standard
Painted brake calipers (red) - Optional
Painted brake calipers (gun metal grey) - Optional
Bodyside vinyl tape stripes with 'Ford GT' logo - Standard
Delete bodyside stripes - Optional
Painted racing stripes (over bonnet, roof & rear hatch) - Optional

BBS painted cast aluminium; 18" (front) & 19" (rear) - Standard
BBS painted forged aluminium lightweight; 18" (front) & 19" (rear) - Optional
Goodyear Eagle F1 Supercar tyres - 235/45ZR18 (front) & 315/40ZR19 (rear) - Standard

Driver and passenger airbags - Standard
Brembo vented disc brakes with ABS - Standard
Remote keyless entry - Standard
Specifications, options and details may be subject to change without notice, and availability may be dependent on model, body type or other requirements. Some features may not be available or compatible in Australia.
ford gt rhd 001
ford gt rhd 002
ford gt rhd 003
ford gt rhd 005
ford gt rhd 006
ford gt rhd 007
ford gt rhd 008
ford gt rhd 009
ford gt rhd 010
ford gt rhd 011
ford gt rhd 012
ford gt rhd 013
ford gt rhd 015
ford gt rhd 016
ford gt rhd 017
ford gt rhd 018
ford gt rhd 019
ford gt rhd 020
ford gt rhd 021

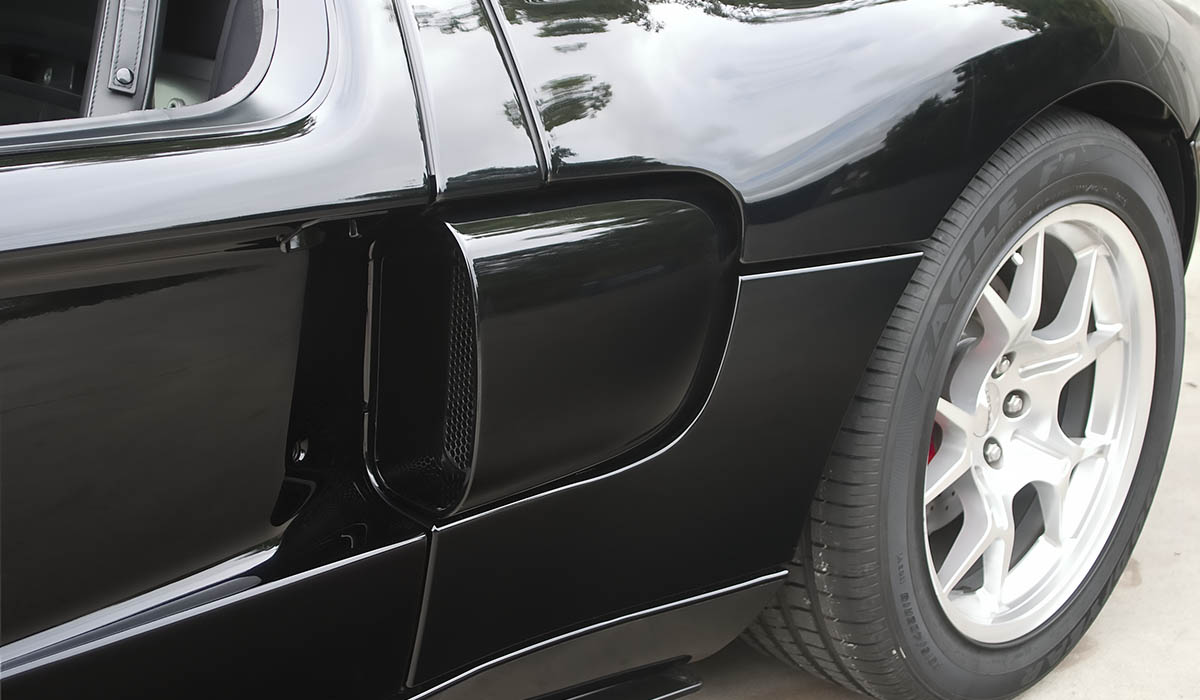

ford gt rhd 023
ford gt rhd 024
ford gt rhd 025
ford gt rhd 026
ford gt rhd 027
ford gt rhd 028
ford gt rhd 029

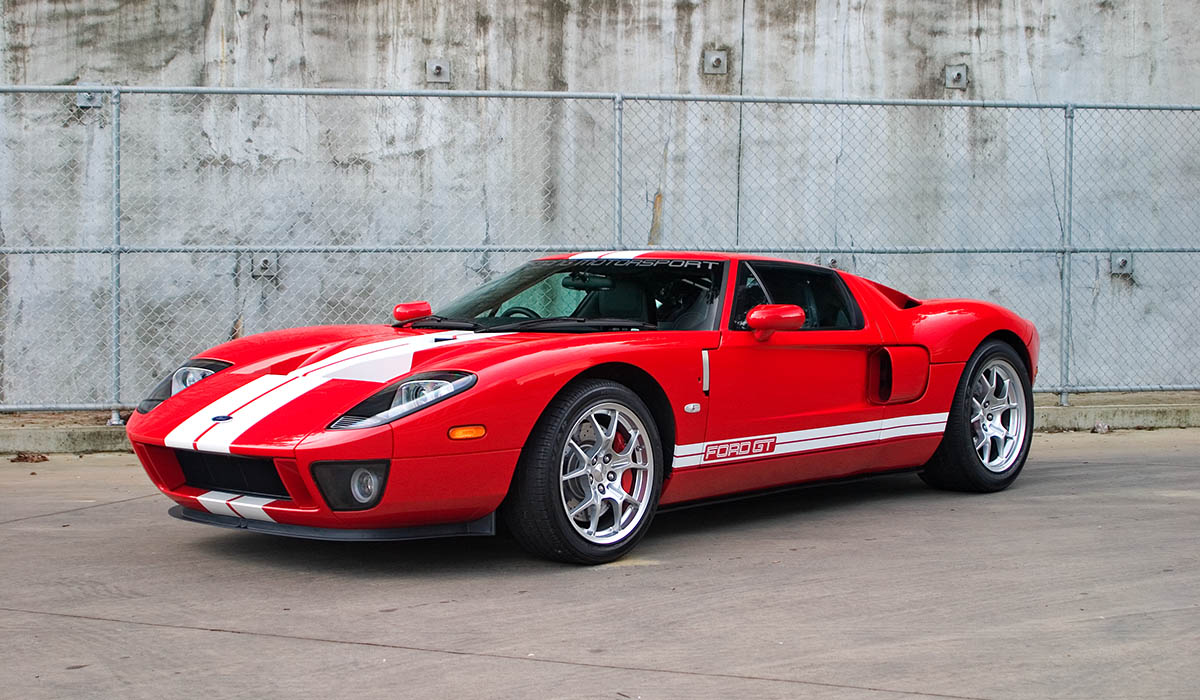

ford gt rhd 032
