CORVETTE STINGRAY DESIGN
Corvette Stingray’s provocative exterior styling is as functional as it is elegant. It makes a bold design statement that embraces the advanced technology of the car, while enhancing its overall performance in everything from the wind tunnel to the track.

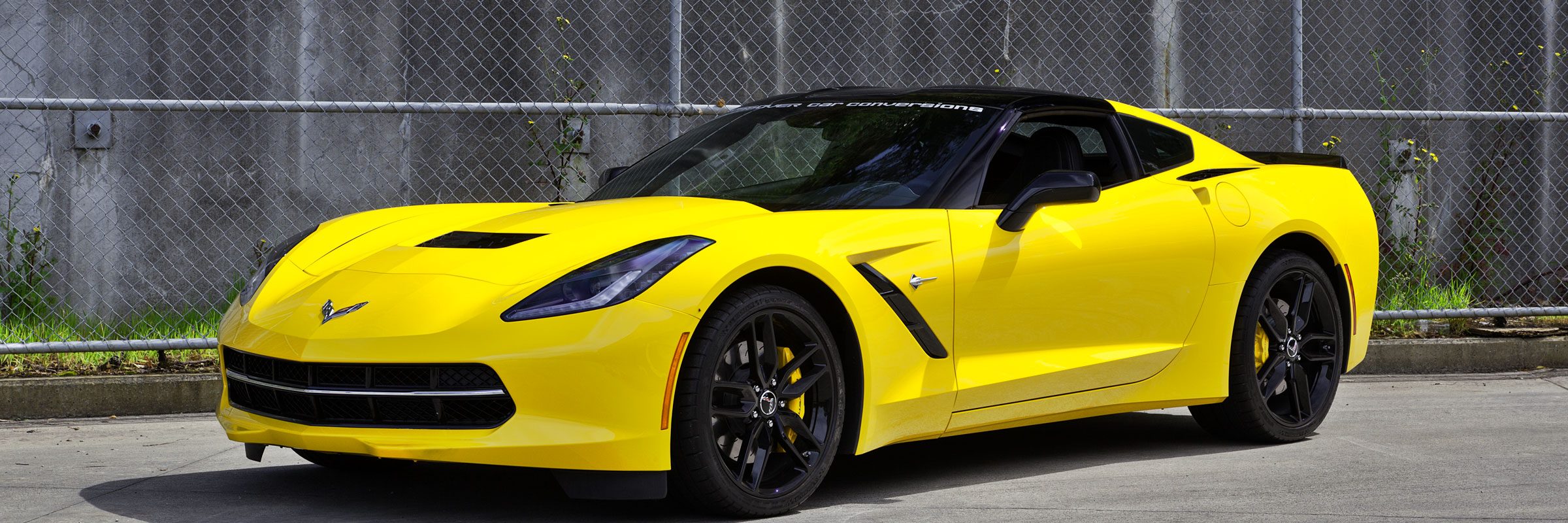

Lighting is a signature element of the Corvette Stingray’s design and reinforces its high-tech aesthetic. At the front, indirect white LED lamps form a distinctive daytime styling cue. They are set in black-chrome lamp housings with standard HID projector headlamps. The turn signals feature edge-lit amber LED lighting.

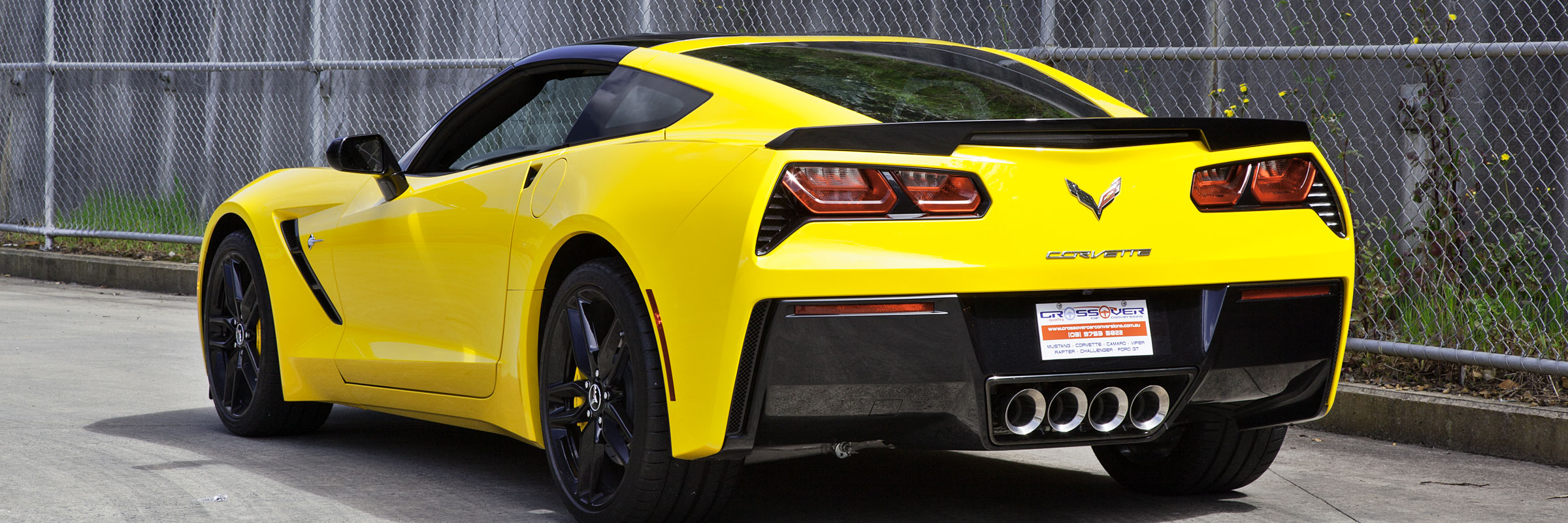

The dual-element taillamps feature three-dimensional, sculpted lenses housing innovative indirect LED lighting. The state-of-the-art lighting uses hidden LED lamps that cast their light up from the bottom of the housing into a reverse reflector, creating an even glow. LED lamps are also used for the white backup lamps. The taillamps integrate functional aircraft-style air outlets for the available differential and transmission coolers.

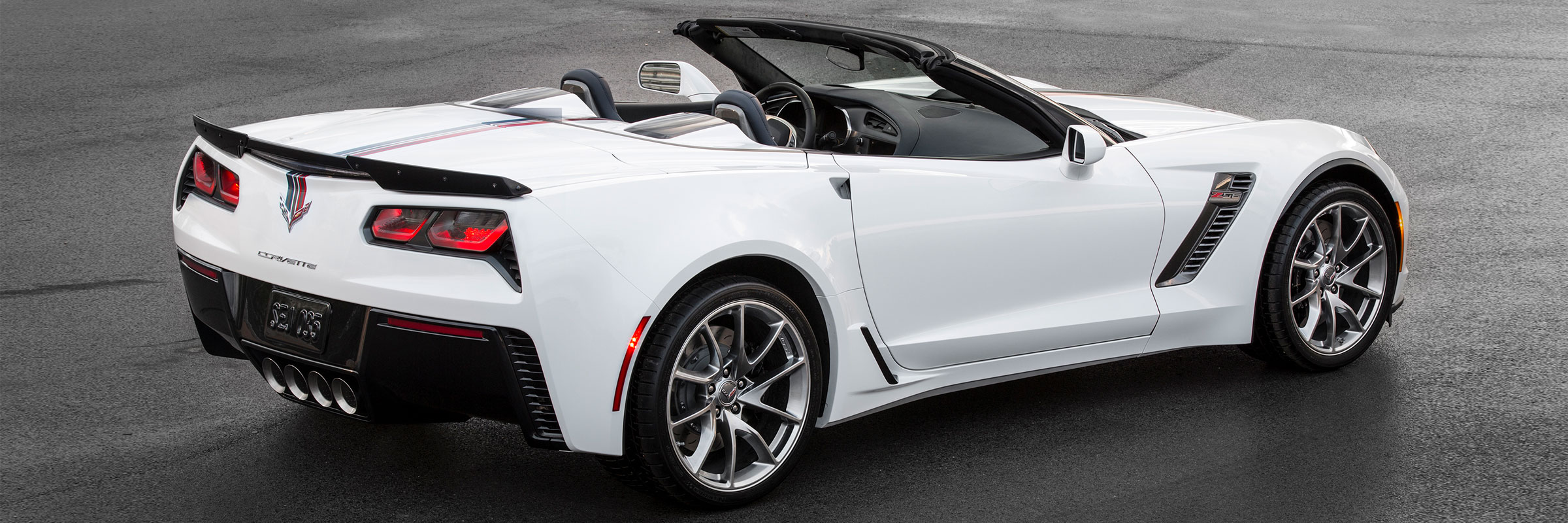

The Corvette Stingray convertible features a fully electronic top that can be lowered remotely using the key fob. The top can also be opened or closed on the go, at speeds of up to 50 km/h. Its folding mechanism is all-new and enables the top to be lowered in 21 seconds.
With the top up, the convertible is designed for a refined driving experience. A thick fabric top, along with sound-absorbing padding and a glass rear window, contributes to a quiet cabin and premium appearance.
With the top down, the Corvette Stingray’s signature profile is further accentuated. Behind the seat backs, dual black trim panels enhance the character lines of the tonneau cover. Corvette Stingray’s signature “waterfall” design originates in the valley between the seats, bringing the exterior colour into the interior.
All Corvette Stingray models with the Z51 Performance Package feature integral coolers for the rear differential and transmission (the transmission cooler is also included with the optional automatic transmission). For coupe models, the air intakes are integrated on the rear quarter panels; and on convertible models, the air intakes are integrated into the underbody.
Airflow through the differential and transmission heat exchangers exits through the aircraft-inspired taillamp vents and lower-rear fascia air outlets. The Z51 Performance Package also includes brake-cooling ducts, a unique rear spoiler and additional air deflectors for enhanced track capability.

HANDCRAFTED, TECHNOLOGICALLY ADVANCED INTERIOR

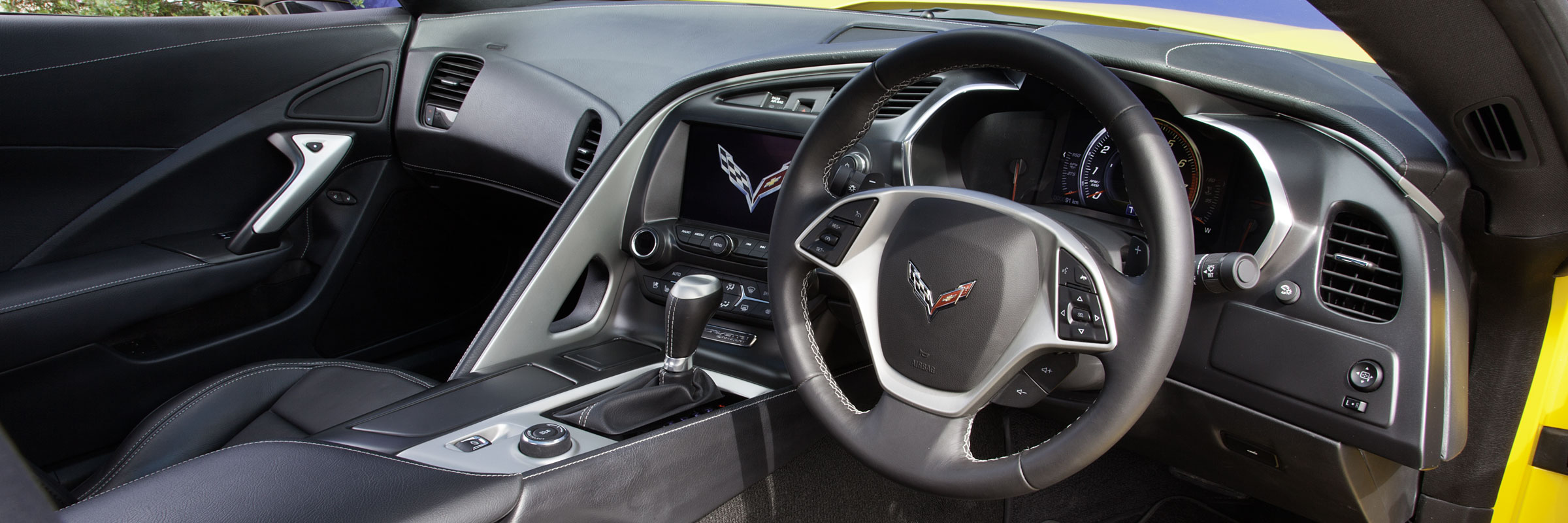

The Corvette Stingray interior blends fine materials and craftsmanship with advanced technologies that contribute to a more connected and more engaging driving experience. Every feature and detail is designed to enhance the driver’s connection to the Corvette, starting with the fighter jet-inspired wraparound cockpit and continuing with supportive seats and high-definition, configurable screens.
A comparatively small, 14.1-inch-diameter (360 mm) steering wheel – with a new flat-bottom design – fosters a more direct, immediate feel to directional inputs. The attention to the driver extends to the smallest details, including the flat, precise stitching on the steering wheel designed to provide a smooth, consistent feel. Precise and elegant stitching also is seen in the available Napa leather trim on the seats. Two seating choices are offered: a GT seat for all-around comfort and a Competition Sport seat with more aggressive side bolstering that provides greater support on the track. The frame structure for both seats is made of magnesium for greater strength.
At the core of the Corvette Stingray’s driver-focused technologies is the cockpit-mounted Driver Mode Selector, which allows drivers to optimise the car for their driving preference and road conditions via five settings: Weather, Eco, Tour, Sport and Track.
The Tour mode is the default setting for everyday driving; Weather mode is designed primarily for added confidence while driving in rain and snow; Eco mode is for achieving optimal fuel economy; Sport mode is for spirited road driving and Track mode is for track use. Selectable features include:

• Gauge cluster configuration
• ETC (Electronic Throttle Control)
• Paddle-shift automatic transmission
• Active Fuel ManagementExhaust (active exhaust system)
• Electronic limited-slip differential (Z51)
• Steering
• Magnetic Ride Control
• Launch control
• Active handling (StabiliTrak stability control)
• Traction control
• Performance Traction Management

Three configurable displays, including a pair of eight-inch screens and colour head-up display, deliver personalised information and convey the different performance parameters of each drive mode.

PERFORMANCE DATA RECORDER
The award-winning, industry-first Performance Data Recorder – or PDR – enables users to record high-definition video, with telemetry overlays, of their driving experiences on and off the track. It was developed with Cosworth, the motorsports-engineering company that supplies the Corvette Racing team’s data acquisition and telemetry electronics system.
The PDR system includes three major components, all seamlessly integrated into the Corvette Stingray’s interior. First is a high-definition camera, mounted within the windshield header trim, which records the driver’s point-of-view through the windshield. Audio is recorded via a dedicated microphone in the cabin.
Second is a self-contained telemetry recorder, which uses a dedicated GPS receiver that operates at 5 hertz, or cycles per second – five times faster than the in-dash navigation system, which allows more precise positioning and corner traces. Finally, the system features a dedicated SD-card slot in the glove box for recording and transferring video and vehicle data (SD card not included). Recording time depends on the capacity of the memory card, but an 8-gigabyte card can record approximately 200 minutes, while a 32-GB card stores up to about 800 minutes – more than 13 hours of driving time.

ENGINEERING DETAILS
Corvette Stingray coupe and convertible take advantage of lightweight materials, advanced manufacturing techniques and technology transfer from the Corvette Racing program to produce an ideal 50/50 weight balance and to deliver world-class power-to-weight ratios.
The technologically advanced foundation is an aluminium frame structure so strong, no structural reinforcements are needed for the convertible model. The only changes are limited to accommodations for the folding top and repositioned safety belt mounts.
The frame features main rails composed of five customised aluminium segments, including aluminium extrusions at each end, a center main rail section and hollow-cast nodes at the suspension interface points. Each segment’s gauge varies in thickness from 2mm to 11mm, tailored – along with the shape – to optimise the strength requirements for each frame section with minimal weight.

PERFORMANCE
The Corvette Stingray’s 339kw (455hp) is generated by the LT1 6.2L Small Block V-8 engine, which also produces 624nm (460lb-ft). Its performance comes from combining advanced technologies such as direct injection, Active Fuel Management (cylinder deactivation) and continuously variable valve timing with an advanced combustion system. Z51-equipped models include a dry-sump oiling system.
The LT1 is backed by a choice of active, 2.75-inch-diameter exhaust systems. The standard system features a pair of butterfly valves that contribute to greater refinement at cruising speeds when the engine is operating in fuel-saving V-4 mode. The available performance variable-mode active exhaust system has two additional valves that open to a lower-restriction path through the mufflers. When open, these valves increase engine performance and produce a more powerful exhaust note – while also raising the engine’s output to 343kw (460hp) and 630nm (465lb-ft) of torque.
The LT1 is offered with an all-new seven-speed manual transmission with Active Rev Matching. It incorporates rev-matching technology for upshifts and downshifts. This driver-selectable feature can be easily engaged or disengaged via paddles on the steering wheel. The seven-speed is used with a new dual-mass flywheel and dual-disc clutch, which deliver greater shift quality and feel through lower inertia. The transmission with the Z51 Performance Package includes specific close-ratio gearing for more aggressive driving.
An available eight-speed paddle-shift automatic transmission, designed and built by GM, delivers world-class shift times that rival the best dual-clutch designs. Its availability makes Corvette Stingray one of the few sports cars to offer a conventional manual transmission and an eight-speed automatic.

DRIVING EXPERIENCE
The Corvette Stingray’s chassis and suspension are designed to take advantage of the lighter, stiffer structure. Its rigidity allowed engineers to more precisely tune the suspension and steering for a more nimble and responsive driving experience. The components and their calibrations – from the brake size and damper rates to the steering system – are identical between coupes and convertible.
A racing-proven short/long-arm suspension design is used front and rear, with lightweight complementing components that include hollow lower control arms and aluminium rear toe links.
The Corvette Stingray rides on 18 x 8.5-inch front and 19 x 10-inch rear wheels, while models with the Z51 Performance Package roll on 19 x 8.5-inch front and 20 x 10-inch rear forged aluminium wheels – all shod with Michelin Pilot Super Sport run-flat tyres developed specifically for the seventh-generation Corvette. As a result, the Corvette Stingray with the Z51 Performance Package is capable of 1.03g in cornering acceleration.
Dampers include standard 35mm-piston Bilstein monotube shocks that connect to dual-path aluminium shock mounts that separate the shock rod and shock body load paths. The Z51 Performance Package comes with 45mm-piston Bilstein dampers for more aggressive body control and track capability. Z51 is available with the third-generation Magnetic Ride Control, which features a twin-wire/dual-coil damper system that reacts 40 percent faster than previous generations, enabling improved ride comfort and body control.
Magnetic Ride Control is also available on non-Z51 Stingray models (requires 19-/20-inch wheels).
Electric power steering offers variable ratios and variable effort to tailor responsiveness and feel for each driving situation. It also delivers precise control and feedback to the driver, along with great variability of effort for high-performance driving, as well as excellent on-center sensitivity and linearity.
A smart electronic limited-slip differential (eLSD) is included in the Z51 Performance Package and continuously makes the most of the torque split between the rear wheels. The system features a hydraulically actuated clutch that can infinitely vary clutch engagement and can respond from open to full engagement in tenths of a second. It shifts torque based on a unique algorithm that factors in vehicle speed, steering input and throttle position to improve steering feel, handling balance and traction.
The eLSD is fully integrated with Electronic Stability Control and Performance Traction Management systems. Its calibrations vary among three modes, based on the Drive Mode Selector setting:

• Mode 1 is the default setting for normal driving and emphasises vehicle stability
• Mode 2 is engaged when electronic stability control is turned off in the Sport or Track modes. This calibration enables more nimble turn-in and traction while accelerating out of a corner
• Mode 3 is automatically selected when Performance Traction Management is engaged. This calibration has the same function as Mode 2, but is fine-tuned to work with Performance Traction Management.
  Standard Brembo brakes, with four-piston fixed calipers derived from racing, deliver exceptional stopping power on the street or track. System highlights include:12.6-inch (320 mm) front rotors and 13.3-inch (338 mm) rear rotors are standard and have 35-percent more swept area than previous-generation brakes. Consequently, stopping distance is improved 9 percentDual-cast, slotted 13.6-inch (345 mm) front rotors and 13.3-inch (338 mm) slotted rear rotors are included with Z51 Performance Package. They have 6-percent more swept area than the previous-generation Grand Sport and are cooled front and rear for improved track capability. Consequently, stopping distance is improved 5 percentAll brake packages have fixed four-piston front and rear calipers that are stiffer for more even pad wear, reduced drag and improved modulation.
